Welcome to

Turnstiles.us

Quality Turnstile installation and the best selection of high tech security systems are just two of the reasons that make TURNSTILES.us the perfect choice for security turnstiles. When you're looking for the best in security access, loss control devices, and high tech security systems, look no further than TURNSTILES.us. Since 1989, we've proudly been offering the best security turnstiles that help greatly increase the visible security of your business or organization. We're USA GSA licensed, and are the chosen provider of Security Turnstiles by a number of respected Organizations and Businesses.

Take a look at our client list, and our installation -  www.TurnstileInstallation.com

turnstiles Controlled access optical - BEACON SERIES

Our Beacon™ series optical turnstiles combine modern, optical sensing technology with classic cabinet designs in either wood or 304 brushed stainless steel. This line features both low and large profile units to fit any situation, and can integrate with all standard access control equipment.

Using a non-restrictive method to control traffic flow, Beacon™ series units are ideally suited for office personnel entrances where entrance requires an ID card. In addition, they allow for rapid pedestrian advancement and barrier-free ADA access while preventing "tailgating" by those without credentials. Optical lanes offer a flexible range of passage widths from 22" to 38".

Beacon Series LARGE PROFILE UNITS - BE800-X

# 1

# 1

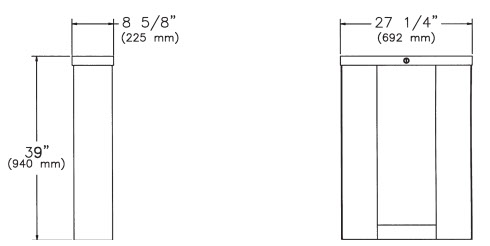

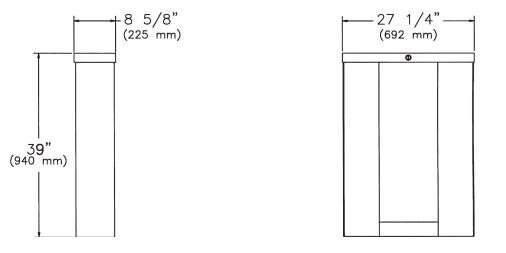

BE800-X Dimensions

HEIGHT
WIDTH
DEPTH

39"
     27.25"
        8.625"

Technical Features

Optical sensors provide for passage for up to 30 people per minute.

Powerful through-beam sensors exceed sensing distance to ensure proper functionality.

LED graphic arrays indicate direction status.

Lower section optical sensors prevent unauthorized "crawling" through lanes.

Configurable for controlled passage in one or both directions with free or no passage in the other via logic controller settings..

Configurable for controlled passage in one or both directions with free or no passage in the other via logic controller settings.

Alarm condition provides an audible tone, as well as a solid-state output for integration into other systems.

Passage widths are flexible from 22" to 38".

Beacon Series LARGE PROFILE UNITS - BE800-Z

# 2

# 2

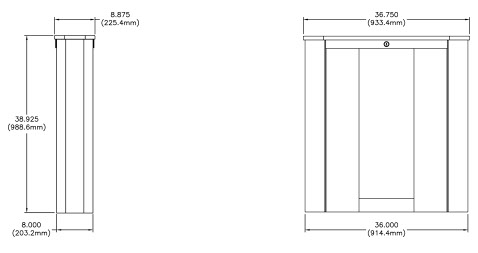

BE800-Z Dimensions

HEIGHT
WIDTH
DEPTH

       38.925"
     36.75"
        8.875"

Technical Features

Optical sensors provide for passage for up to 30 people per minute.

Powerful through-beam sensors exceed sensing distance to ensure proper functionality.

LED graphic arrays indicate direction status.

Lower section optical sensors prevent unauthorized "crawling" through lanes.

Configurable for controlled passage in one or both directions with free or no passage in the other via logic controller settings..

Configurable for controlled passage in one or both directions with free or no passage in the other via logic controller settings.

Alarm condition provides an audible tone, as well as a solid-state output for integration into other systems.

Passage widths are flexible from 22" to 38".

Beacon Series LARGE PROFILE UNITS - BE800-R

# 3

# 3

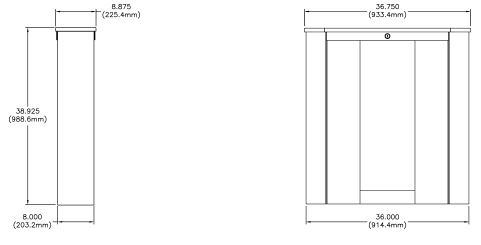

BE800-R Dimensions

HEIGHT
WIDTH
DEPTH

       38.925"
     36.75"
        8.875"

Technical Features

Optical sensors provide for passage for up to 30 people per minute.

Powerful through-beam sensors exceed sensing distance to ensure proper functionality.

LED graphic arrays indicate direction status.

Lower section optical sensors prevent unauthorized "crawling" through lanes.

Configurable for controlled passage in one or both directions with free or no passage in the other via logic controller settings..

Configurable for controlled passage in one or both directions with free or no passage in the other via logic controller settings.

Alarm condition provides an audible tone, as well as a solid-state output for integration into other systems.

Passage widths are flexible from 22" to 38".

Our full-size optical turnstiles feature brushed 304 stainless cabinets with round (BE800-R) and trapezoid (BE800-Z) solid-surface tops, or a stainless rectangular top (BE800-X).

Beacon Series Low Profile - Barrier Free Optical Turnstile

# 4

# 4

BE800-S

Data Sheet

Match any interior environment with this unit's 304 stainless steel cabinet and designer, solid-surface top  available in your choice of color.

$ 6,787.00 (per lane)

BE800-W

Data Sheet

While finely-crafted wood suggests "classic," having your choice of custom cabinetry and solid-surface top options lets you define it.

$ 6,636.00 (per lane)

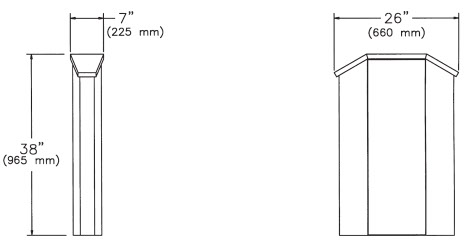

BE800-S & BE800-W

Dimensions

Dimensions

HEIGHT
WIDTH
DEPTH

     38"
     26"
       7"

Our small profile Beacon™ series turnstiles feature stainless steel (BE800-S) or wood cabinets (BE800-W) and solid-surface angled tops.

Standard solid surface top choices

# 5

# 5

Autumn

Blue Jeans
